S46P
Passive Point Source
Entwickelt in Terrassa
Perspective·1 / 7
Funktionen
Highlight

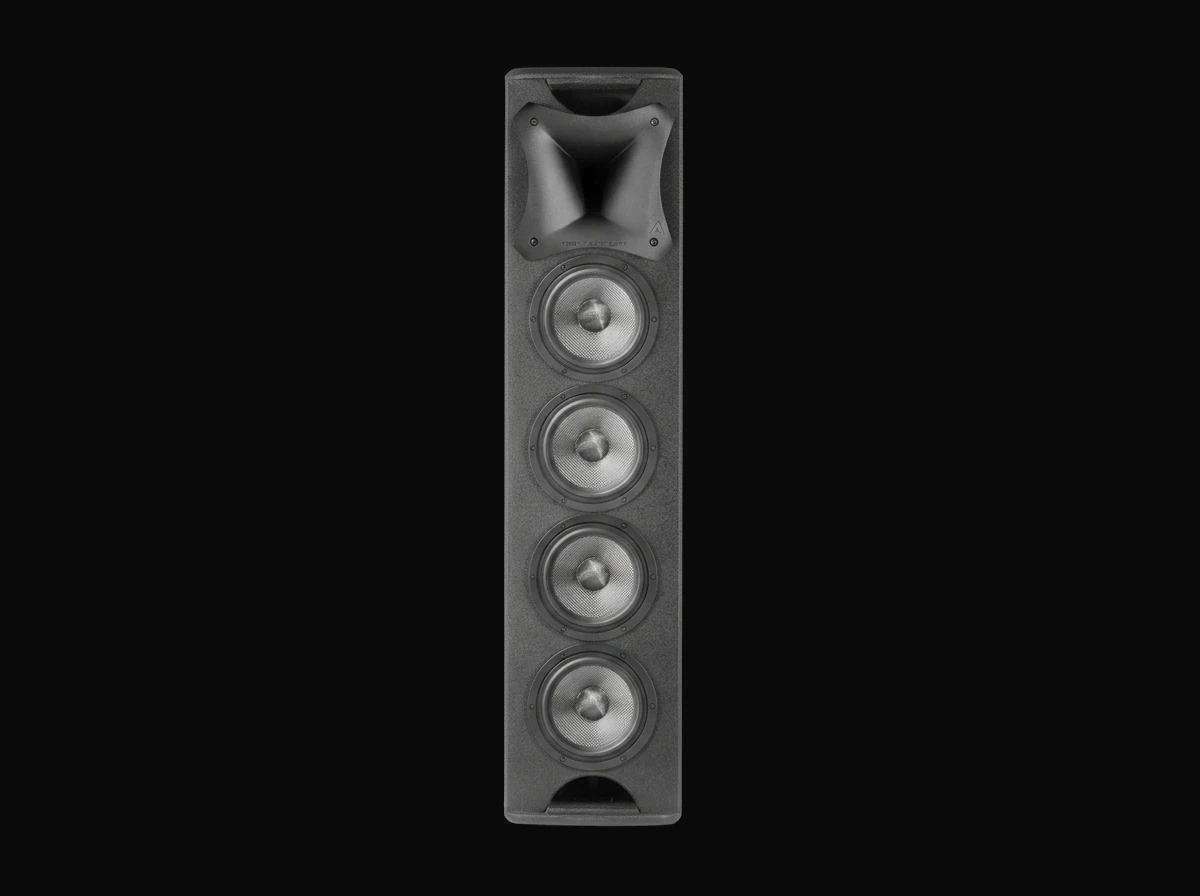

6” low frequency custom-made speaker including a carbon fiber cone with rubber suspension, long excursion voice coil and neodymium magnet. This combination of Hi-End components provides surprising, high-quality performance, very good low-frequency response and high sound pressure level.
Die Daten
SPL
126 dB
POWER
800 W
COVERAGE
50° to 100° (H) × 55° (V)
WEIGHT
19.8 kg
Akustische Leistung
| Frequency response (-10 dB) | 50 Hz to 19 kHz |
| Sensitivity (1 W / 1 m) | 97 dB |
| Maximum SPL (1 m) | 126 dB |
| Coverage (-6 dB) | 50° to 100° (H) × 55° (V), asymmetrical horn |
Verstärkung
| Configuration | Passive two-way column array |
| Program power | 800 W |
| Impedance | 8 Ω |
Maße und Gewicht
| Dimensions (H × W × D) | 1056 × 250 × 274 mm |
| Weight | 19.8 kg |
Spezifikationen aus der Amate Audio Produktübersicht, März 2026. Änderungen ohne Vorankündigung vorbehalten.
