S46
Active Point Source
Entwickelt in Terrassa
Perspective·1 / 6
Funktionen
Highlight
Amate Audio’s latest generation DSP system management is integrated with 3rd generation Class D amplification. Colour touchscreen operation and monitoring of DSP system includes access to powerful presets – engineered by Amate Audio’s R&D team – that instantly configure your Nítid loudspeaker for the majority of common application environments within seconds, prior to rigging or installation.
Die Daten
SPL
127 dB
POWER
1000 W
COVERAGE
50° to 100° (H) × 55° (V)
WEIGHT
20.8 kg
Akustische Leistung
| Frequency response (-10 dB) | 50 Hz to 19 kHz |
| Maximum SPL (1 m) | 127 dB |
| Coverage (-6 dB) | 50° to 100° (H) × 55° (V), asymmetrical horn |
Verstärkung
| Configuration | Active two-way column array |
| Amplifier power | 800 W (LF) + 200 W (HF), Class D bi-amp |
DSP und Steuerung
| Built-in DSP | 64-bit with touchscreen |
| Filtering | FIR filters |
| Presets | Factory presets |
Maße und Gewicht
| Dimensions (H × W × D) | 1056 × 250 × 274 mm |
| Weight | 20.8 kg |
Spezifikationen aus der Amate Audio Produktübersicht, März 2026. Änderungen ohne Vorankündigung vorbehalten.
Downloads
Dateien werden von Amate Audio gehostet. Links öffnen amateaudio.com.

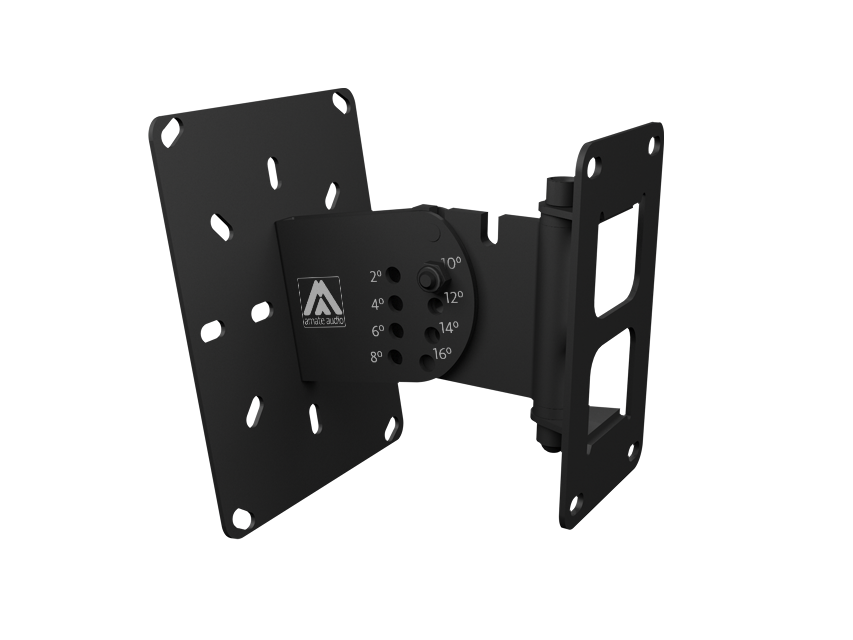

Kompatibles Zubehör
Im Einsatz
Install photography pending
Boutique Hotel Nouveau Van Ham, Breda / 2024
