XW218

    Active Subwoofer

    Engineered in Terrassa

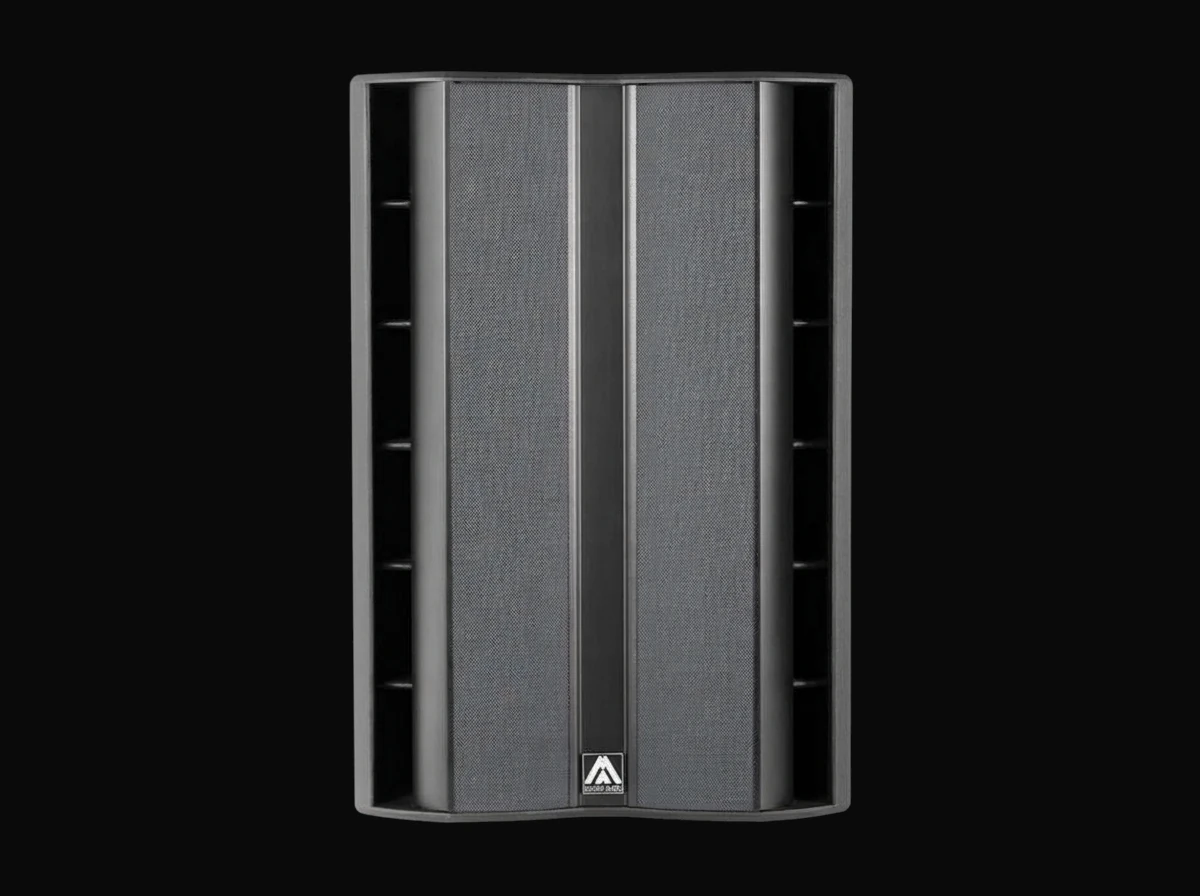

    Xcellence XW218 — Perspective

    Perspective·1 / 7

    Xcellence XW218

    Features

    What sets it apart.

    • Integrated power & control with multiple presets
    • Integrated cardioid presets
    • > 250 V Overvoltage protection
    • High resistance polyurea® finish

    Spotlight

    Touchscreen control

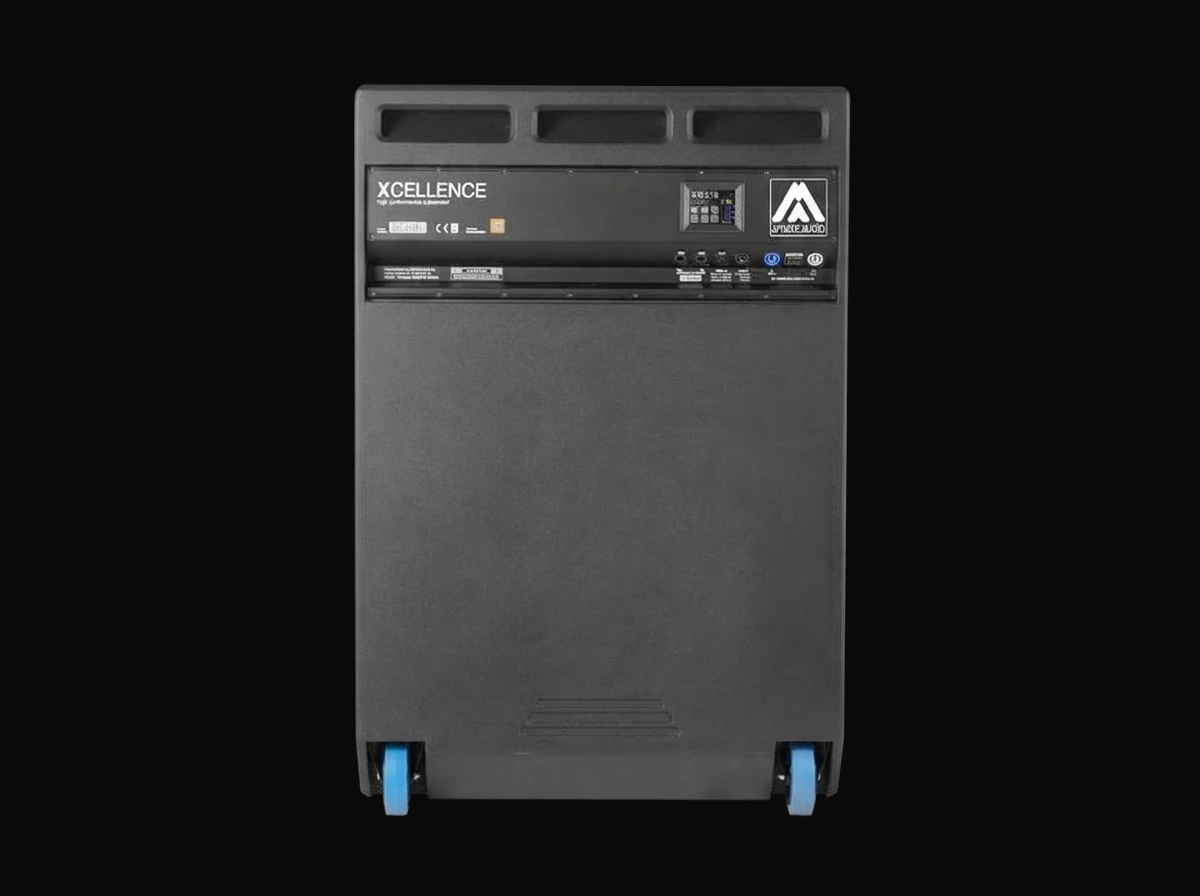

    Amate Audio’s unique rear-panel 3.5″ TFT color touchscreen GUI allows for operation and monitoring of system parameters, presets, and user-adjustments. The GUI also integrates Amate Audio’s latest generation DSP system management with 3rd generation Class D amplification. With the color touchscreen, users can access powerful presets engineered by Amate Audio’s R&D team that can instantly configure Xcellence loudspeakers for common application environments prior to rigging or installation.

    Xcellence rear-panel 3.5″ TFT color touchscreen interface

    The data

    Specifications

    SPL

    141 dB

    FREQUENCY

    25 Hz to 130 Hz

    POWER

    5000 W

    WEIGHT

    106 kg

    Acoustic Performance

    Frequency response (-10 dB)25 Hz to 130 Hz
    Maximum SPL (1 m)141 dB (musical program)
    Coverage (-6 dB)Omnidirectional

    Amplification

    Configuration2 × 18" active subwoofer
    Amplifier power5000 W, Class D

    DSP and Control

    Built-in DSP64-bit processing unit
    FilteringFIR filters
    Cardioid presetsIncluded
    ControlRear-panel touchscreen, DSP Studio 4 (PC and Mac)
    NetworkingDante, Act+

    Physical

    Dimensions (H × W × D)1116 × 750 × 780 mm
    Weight106 kg

    Specifications from the Amate Audio Product Overview, March 2026. Subject to change without prior notice.

    Downloads

    Specifications and assets

    Asset files are hosted by Amate Audio. Links open at amateaudio.com.

    In use

    Where it lives.

    Install photography pending

    Beachfront Summer Festival, Costa Brava / 2024

    Explore installations →
