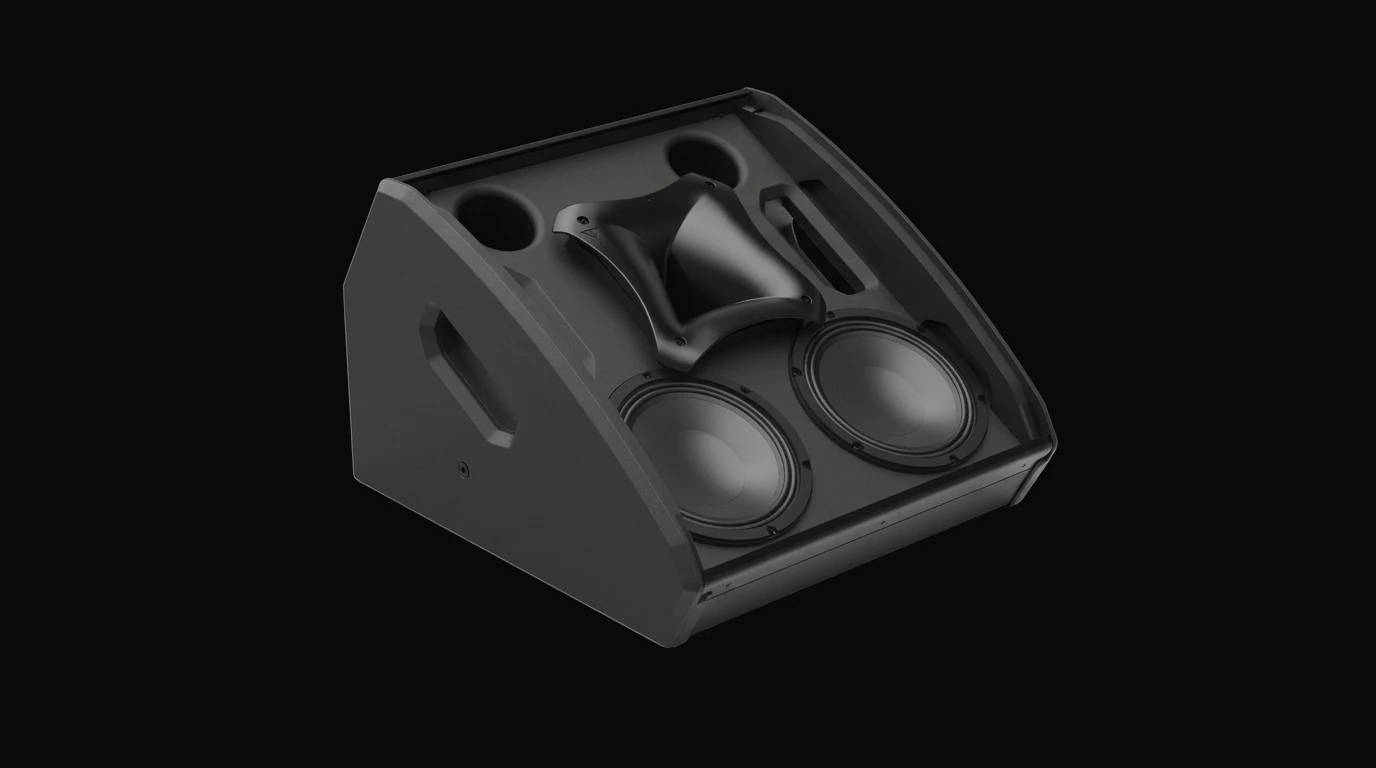

XM82
Active Stage Monitor
Engineered in Terrassa
Perspective·1 / 4
Features
Spotlight
The latest iteration of Amate Audio’s DSPStudio enhances the remote control of Xcellence systems with ACTIVE+ platform via Ethernet/Wi-Fi. Full ACTIVE+ support includes limiters with multichannel gain reduction indication, selectable ECO mode, tilt sensor indication and calibration, new FIR/IIR all-pass filters, 200 meter delay, mains condition and amplifier channel temperature monitoring. [Discover More](https://amateaudio.com/software/dsp-studio3)
The data
SPL
132 dB
POWER
3000 W
COVERAGE
50° to 100° (H) × 55° (V)
WEIGHT
20 kg
Acoustic Performance
| Frequency response (-10 dB) | 70 Hz to 19 kHz |
| Maximum SPL (1 m) | 132 dB (musical program) |
| Coverage (-6 dB) | 50° to 100° (H) × 55° (V) |
Amplification
| Configuration | 2 × 8" bi-amplified active two-way |
| Amplifier power | 2500 W (LF) + 500 W (HF), Class D bi-amp |
DSP and Control
| Built-in DSP | 64-bit processing unit |
| Filtering | FIR filters |

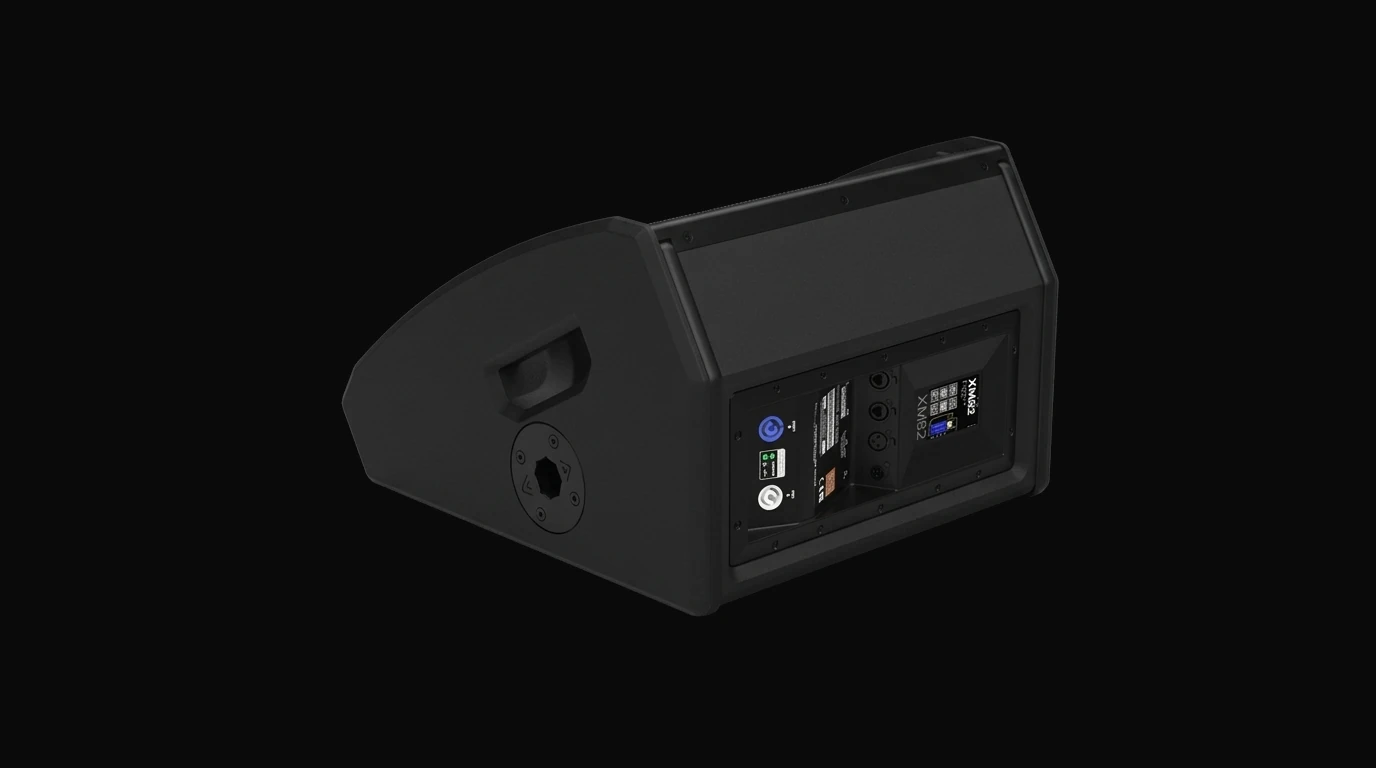

| Control | Rear-panel touchscreen, DSP Studio 4 (PC and Mac) |
| Networking | Dante, Act+ |
Physical
| Dimensions (H × W × D) | 345 × 490 × 530 mm |
| Weight | 20 kg |
Specifications from the Amate Audio Product Overview, March 2026. Subject to change without prior notice.
