TPD3K
Signal Processor
Engineered in Terrassa

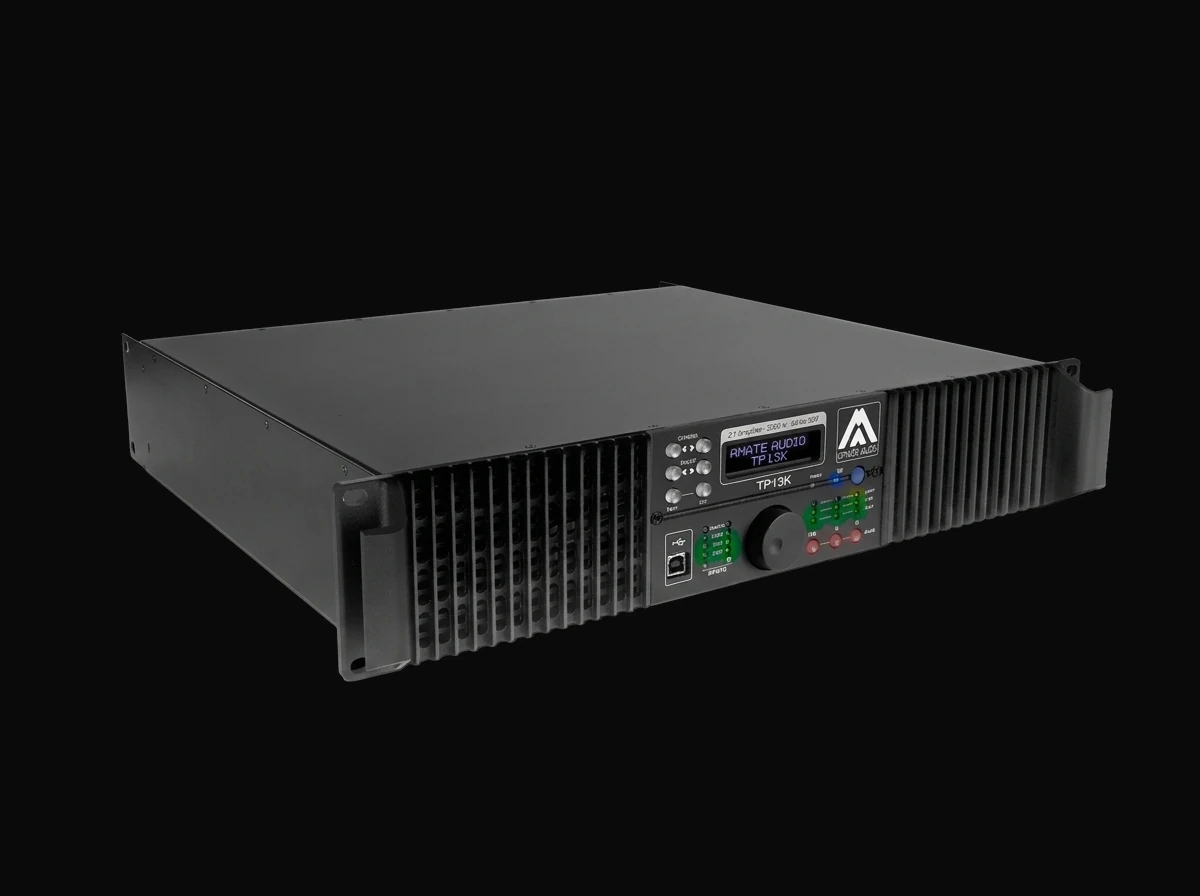

Perspective·1 / 3
TPD3K
The data
Specifications
CHANNELS
3 (2.1)
POWER
2 × 750 W (L/R) + 2000 W (sub) @ 4 Ω
DSP
64-bit
WEIGHT
9 kg
Amplification
| Output power, L and R | 400 + 400 W @ 8 Ω, 750 + 750 W @ 4 Ω |
| Output power, subwoofer | 1500 W @ 8 Ω, 2000 W @ 4 Ω |
| Topology | 3-channel processing amplifier (TriPhonic), 2.1 architecture |
Inputs / Outputs
| Sensitivity | 1.5 V |
| Input impedance | 20 kΩ |
| Inputs | Balanced XLR |

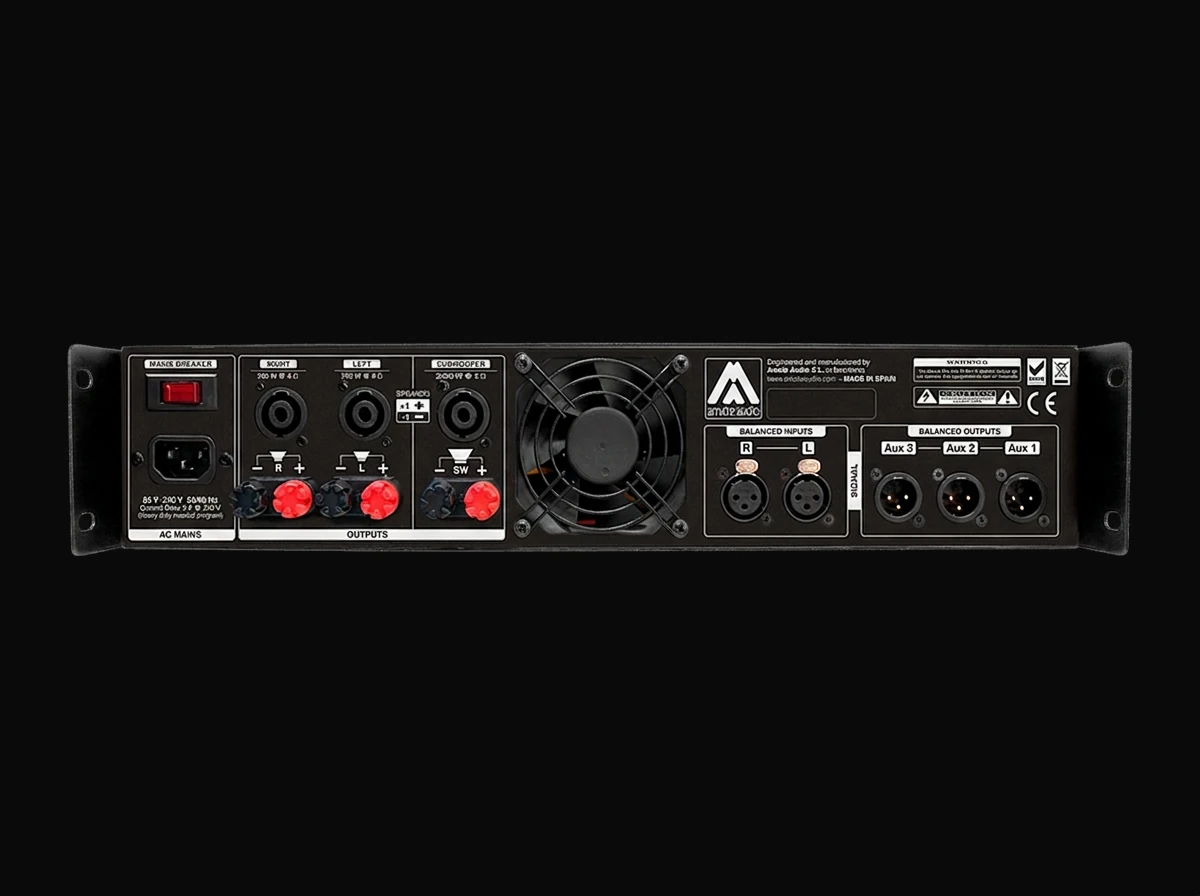

| Outputs | Speakon (L, R, SUB) and binding post; 3 balanced auxiliary outputs (XLR) |
DSP and Control
| DSP | 64-bit, integrated active signal processing and crossover |
| Frequency response, L and R | 70 Hz to 20 kHz (±3 dB), adjustable via DSP |
| Frequency response, subwoofer | 30 Hz to 200 Hz (±3 dB), adjustable via DSP |
| USB | Front-panel USB for configuration |
Power
| Mains | AC 85 to 240 V, 50 / 60 Hz |
| Current draw | 3 A @ 230 V (heavy-duty musical program) |
Physical
| Form factor | 2 U / 19" rack |
| Dimensions (H × W × D) | 88 × 482 × 370 mm |
| Weight | 9 kg |
Specifications from the Amate Audio Product Overview, March 2026. Subject to change without prior notice.
