S10P
Passive Point Source
Engineered in Terrassa
Perspective·1 / 7
Nítid-S S10P
Features
What sets it apart.

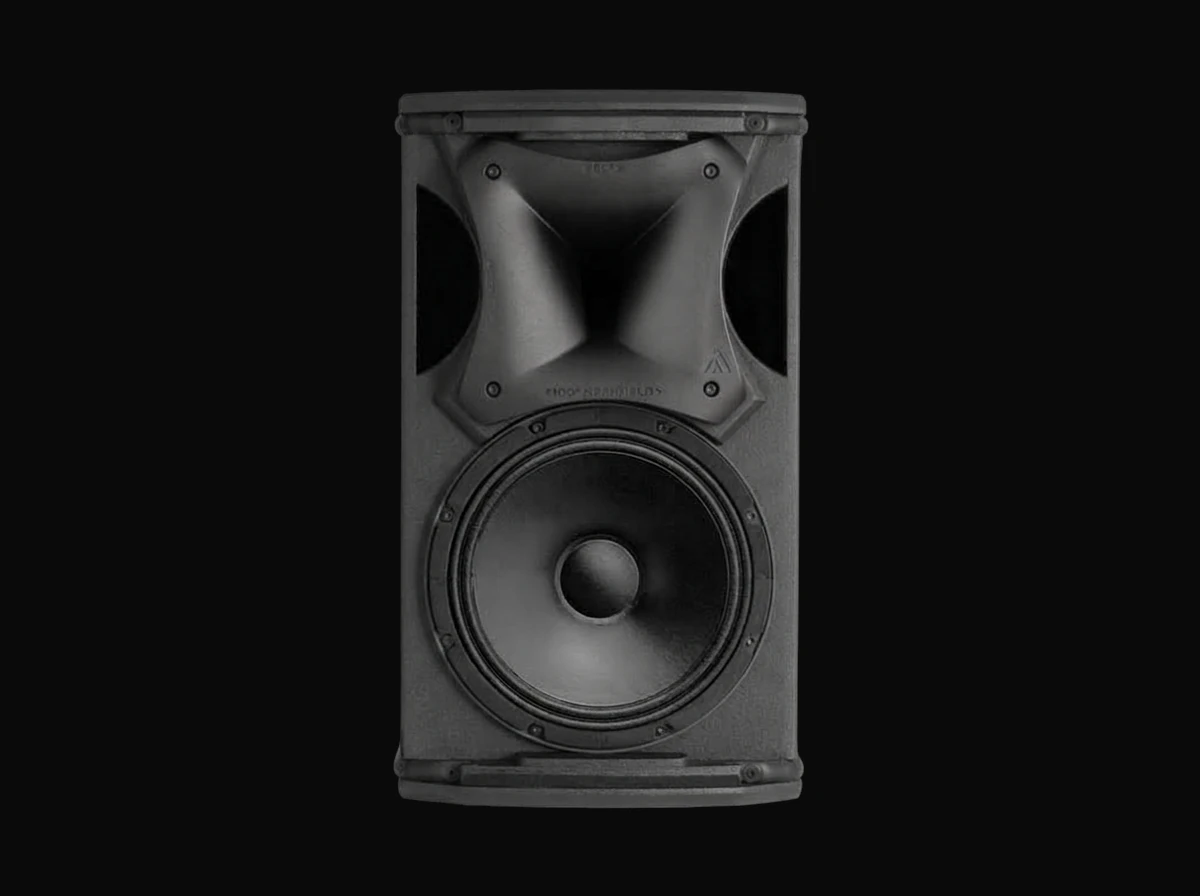

- Asymmetrical dispersion horn

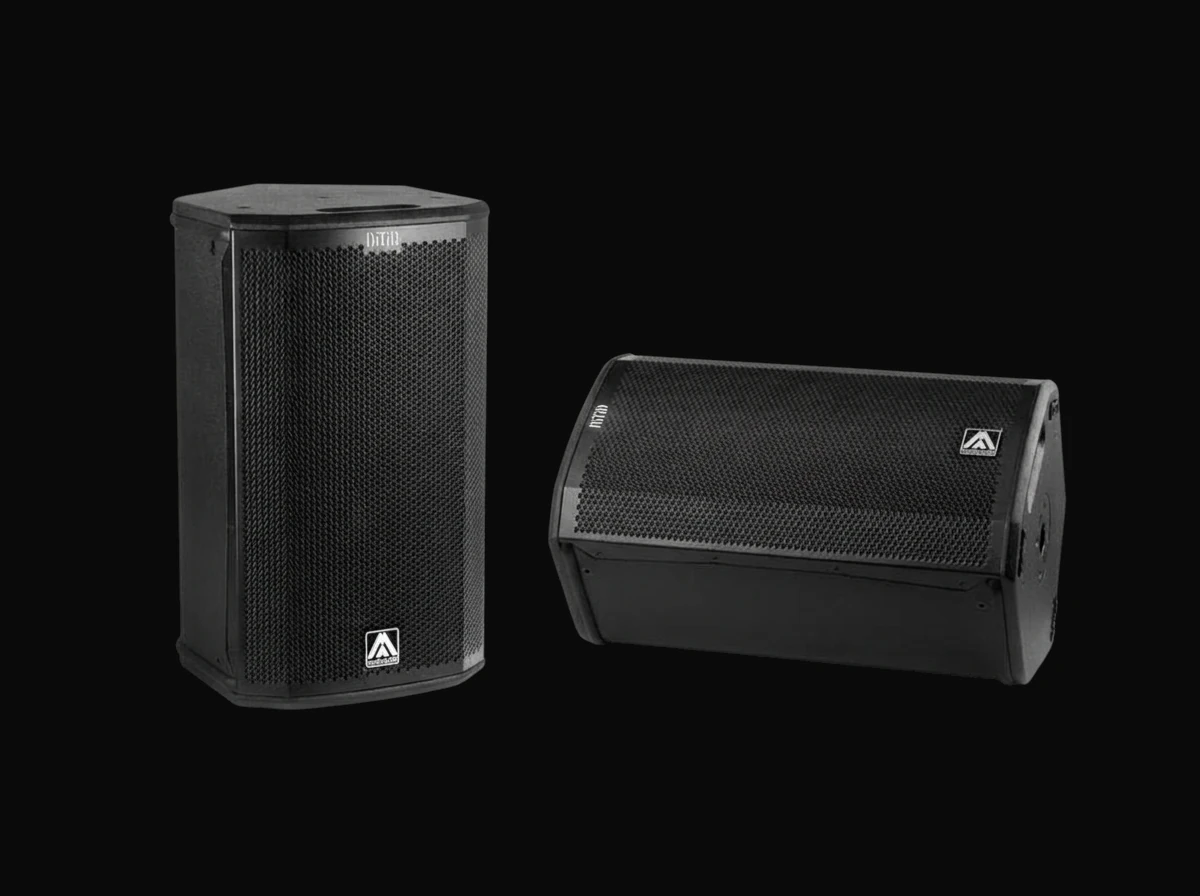

- Versatile FoH PA & stage monitor system
- Multiple presets available with external Amate Audio amplifiers & DSP's
- High resistance Polyurea® finish

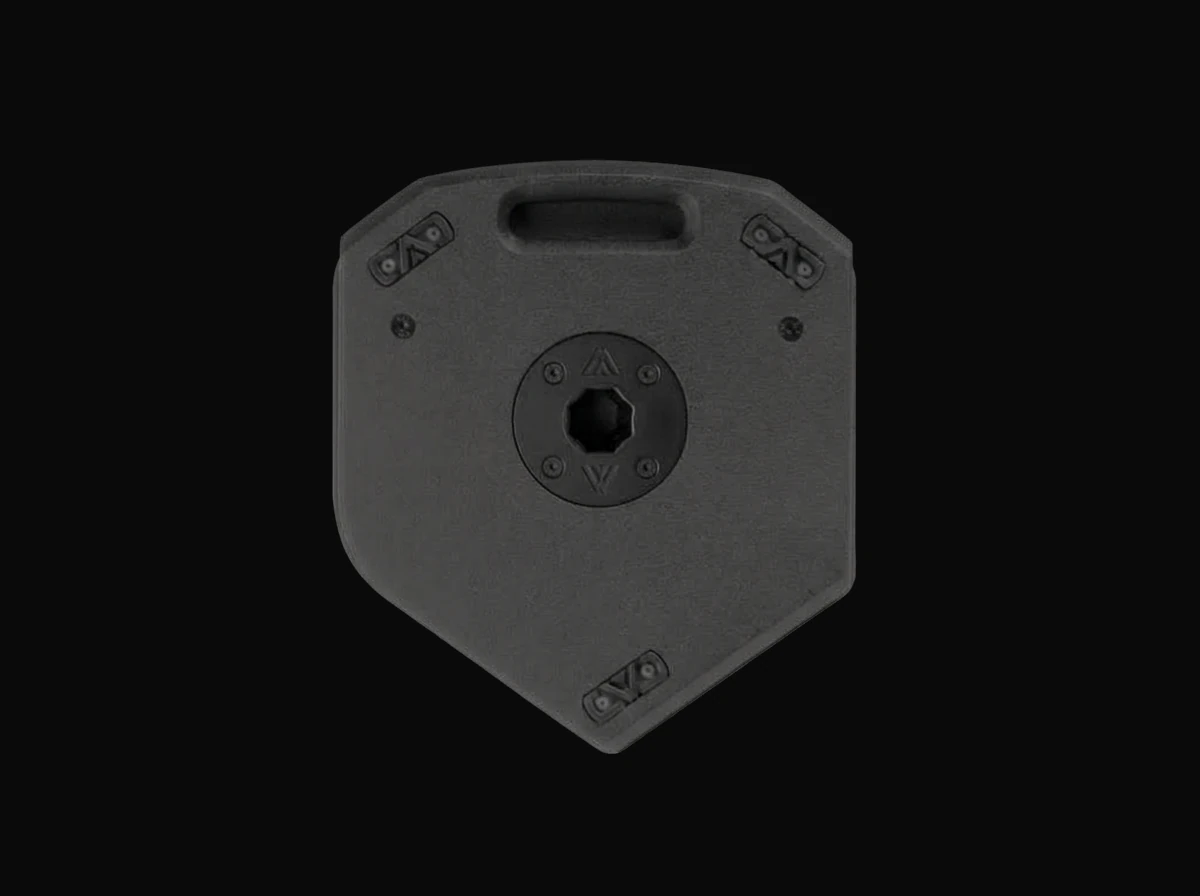

- Easy rigging & installation accessories
The data
Specifications
SPL
123 dB
POWER
500 W
COVERAGE
50° to 100° (H) × 55° (V)
WEIGHT
15.3 kg
Acoustic Performance
| Frequency response (-10 dB) | 55 Hz to 19 kHz |
| Sensitivity (1 W / 1 m) | 96 dB |
| Maximum SPL (1 m) | 123 dB |
| Coverage (-6 dB) | 50° to 100° (H) × 55° (V), asymmetrical horn |
Amplification
| Configuration | 10" passive two-way |
| Program power | 500 W |
| Impedance | 8 Ω |
Physical
| Dimensions (H × W × D) | 543 × 313 × 358 mm |
| Weight | 15.3 kg |
Specifications from the Amate Audio Product Overview, March 2026. Subject to change without prior notice.
