Prodotti/Xcellence/XA211

XA211

Active Line Array

Progettato a Terrassa

Perspective·1 / 7

Xcellence XA211

Caratteristiche

Ciò che lo distingue.

Integrated power & control presets
Exclusive high performance waveguide
Light neodymium components
> 250 V Overvoltage protection

In evidenza

Touchscreen control

Amate Audio’s unique rear-panel 3.5″ TFT color touchscreen GUI allows for operation and monitoring of system parameters, presets, and user-adjustments. The GUI also integrates Amate Audio’s latest generation DSP system management with 3rd generation Class D amplification. With the color touchscreen, users can access powerful presets engineered by Amate Audio’s R&D team that can instantly configure Xcellence loudspeakers for common application environments prior to rigging or installation.

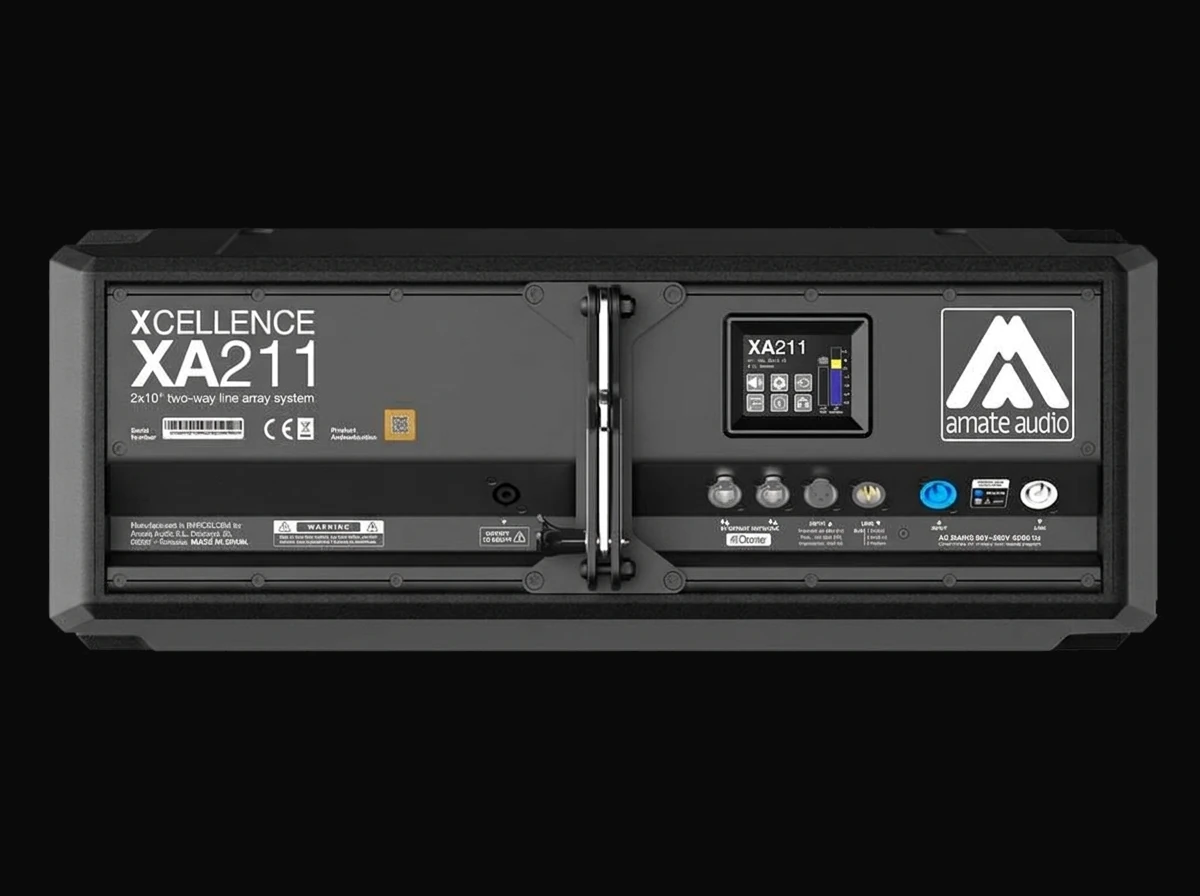

Xcellence rear-panel 3.5″ TFT color touchscreen interface

I dati

Specifiche

SPL

136 dB

POWER

3000 W

COVERAGE

95° (H) × 10° (V)

WEIGHT

35.1 kg

Prestazioni acustiche

Frequency response (-10 dB)	65 Hz to 19 kHz
Maximum SPL (1 m)	136 dB (musical program)
Coverage (-6 dB)	95° (H) × 10° (V)

Amplificazione

Configuration	2 × 10" bi-amplified active two-way line array module (powers one XA211P slave)
Amplifier power	2500 W (LF) + 500 W (HF), Class D bi-amp

DSP e controllo

Built-in DSP	64-bit processing unit
Filtering	FIR filters
Control	Rear-panel touchscreen, DSP Studio 4 (PC and Mac)
Networking	Dante, Act+

Caratteristiche fisiche

Dimensions (H × W × D)	294 × 740 × 566 mm
Weight	35.1 kg

Specifiche dalla Panoramica prodotti Amate Audio, marzo 2026. Soggette a modifiche senza preavviso.

Download

Specifiche e risorse

Data sheet User manual Architect specifications 2D CAD GLL library DSP Studio 4 EASE Focus 3

I file sono ospitati da Amate Audio. I link si aprono su amateaudio.com.
