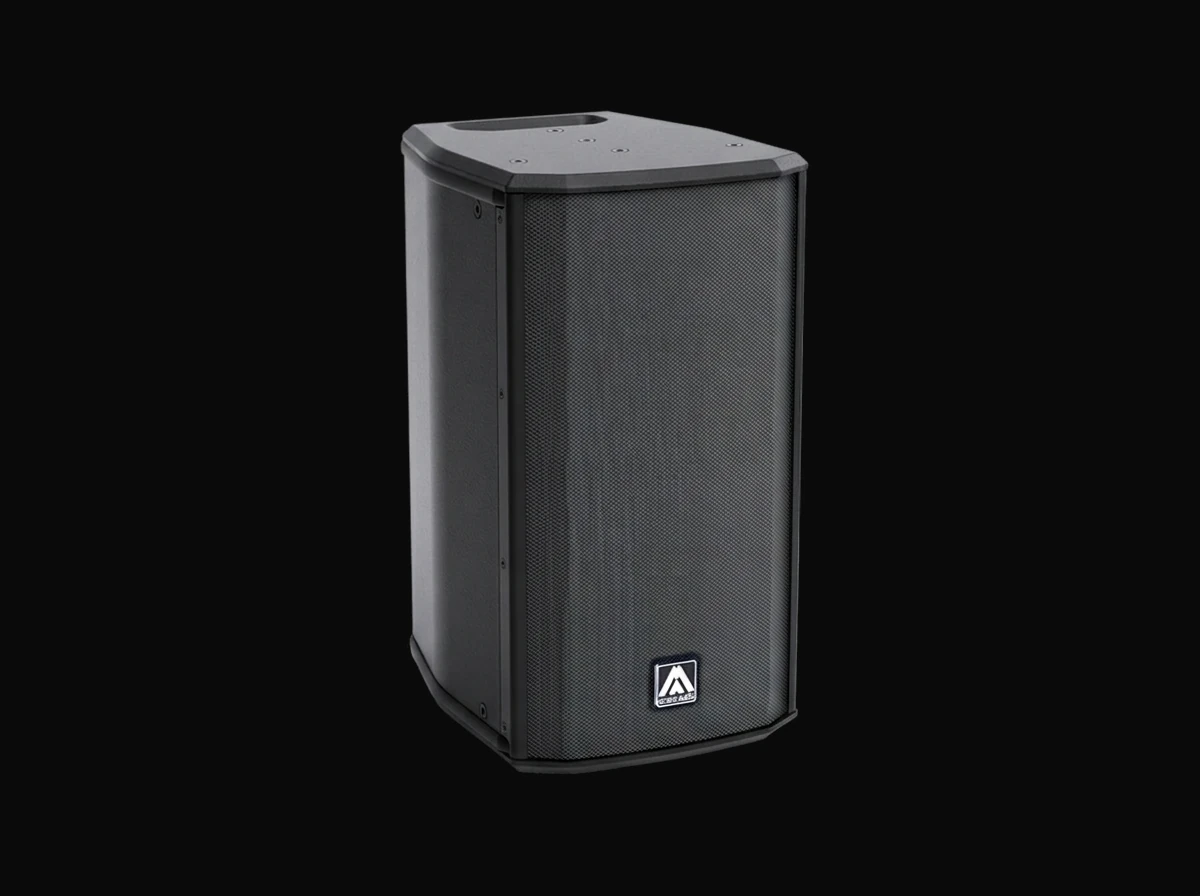

X10FD
Active Point Source
Progettato a Terrassa

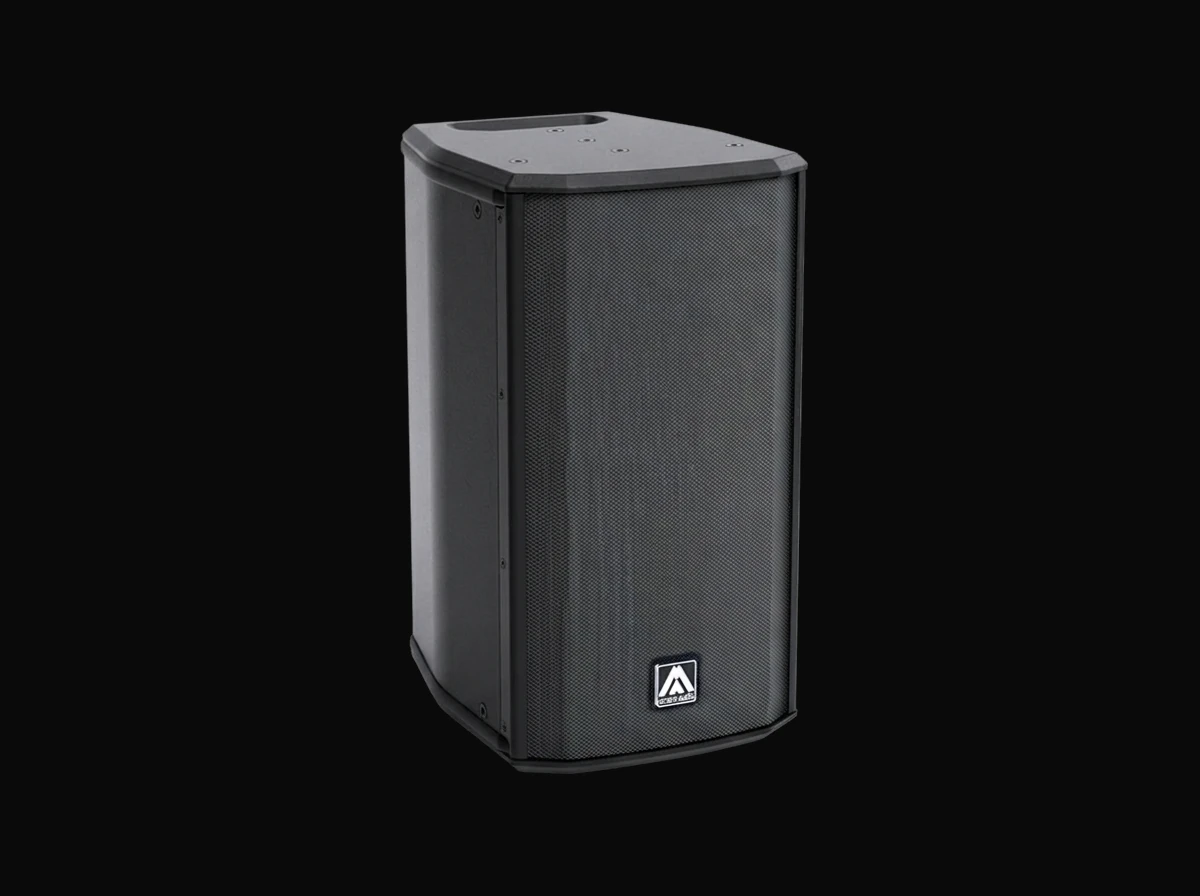

Perspective·1 / 3
Caratteristiche
In evidenza
The latest iteration of Amate Audio’s DSPStudio enhances the remote control of Xcellence systems with ACTIVE+ platform via Ethernet/Wi-Fi. Full ACTIVE+ support includes limiters with multichannel gain reduction indication, selectable ECO mode, tilt sensor indication and calibration, new FIR/IIR all-pass filters, 200 meter delay, mains condition and amplifier channel temperature monitoring. [Discover More](https://amateaudio.com/software/dsp-studio4)
I dati
SPL
128 dB
POWER
1000 W
COVERAGE
50° to 100° (H) × 55° (V)
WEIGHT
19 kg
Prestazioni acustiche
| Frequency response (-10 dB) | 53 Hz to 19 kHz |
| Maximum SPL (1 m) | 128 dB (musical program) |
| Coverage (-6 dB) | 50° to 100° (H) × 55° (V) |
Amplificazione
| Configuration | 10" bi-amplified active two-way |
| Amplifier power | 800 W (LF) + 200 W (HF), Class D bi-amp |
DSP e controllo
| Built-in DSP | 64-bit processing unit |
| Filtering | FIR filters |
| Control | Rear-panel touchscreen, DSP Studio 4 (PC and Mac) |
| Networking | Dante, Act+ |
Caratteristiche fisiche
| Dimensions (H × W × D) | 554 × 303 × 370 mm |
| Weight | 19 kg |
Specifiche dalla Panoramica prodotti Amate Audio, marzo 2026. Soggette a modifiche senza preavviso.
Download
I file sono ospitati da Amate Audio. I link si aprono su amateaudio.com.
In uso
Install photography pending
Hollywood Event Center, Los Angeles / 2023
Esplora le installazioni →
