S12
Active Point Source
Progettato a Terrassa

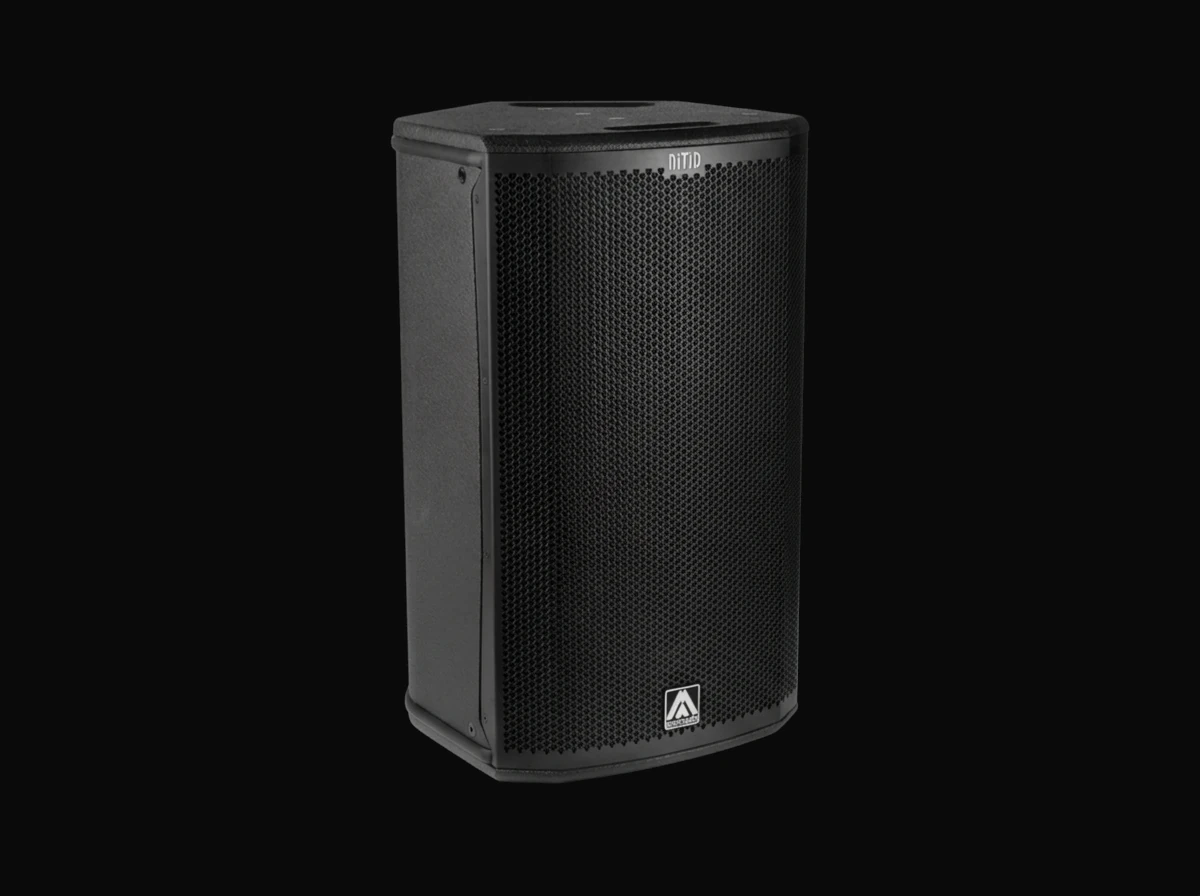

Perspective·1 / 9
L'argomento

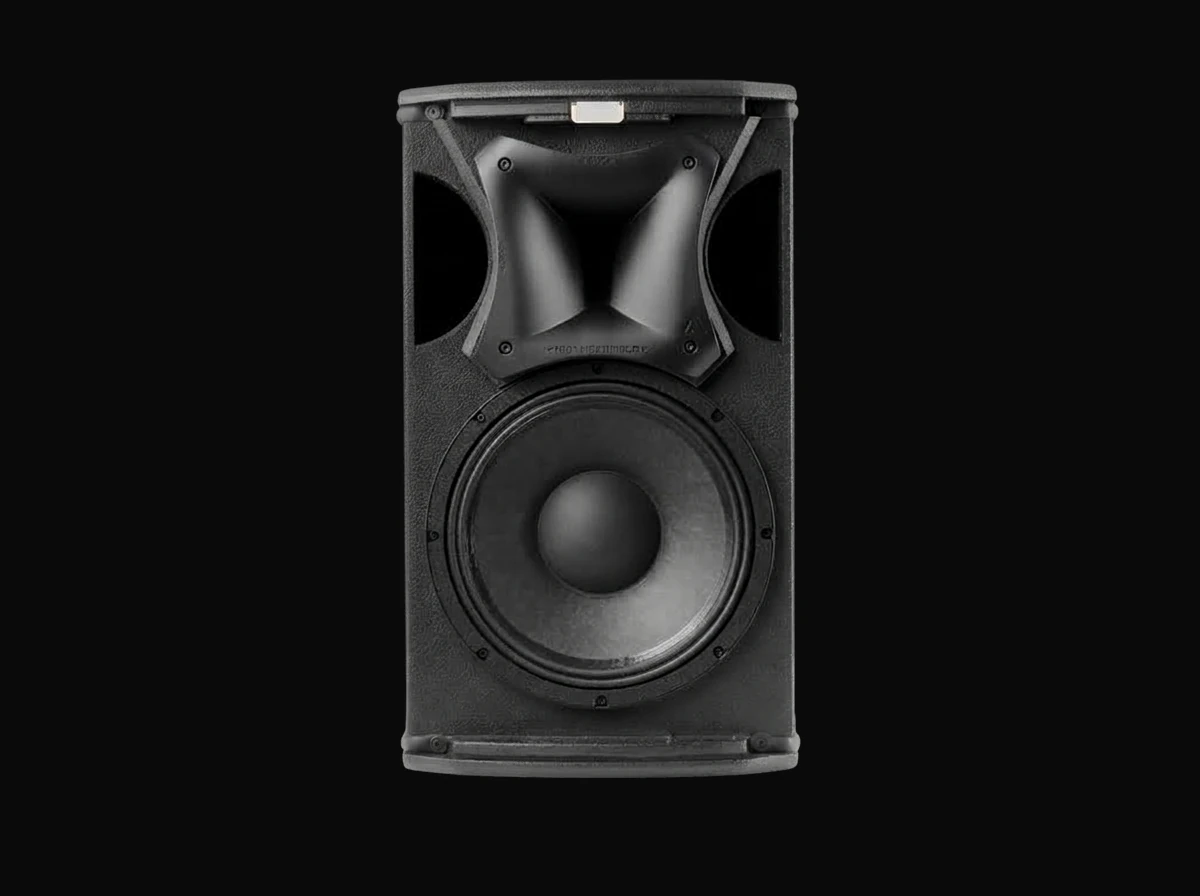

S12 sits at the centre of the Nítid-S line for a reason. Its 12" coaxial driver and onboard DSP deliver the SPL of a portable PA in a cabinet small enough to live above a banquette without ever drawing the eye.
Caratteristiche
In evidenza

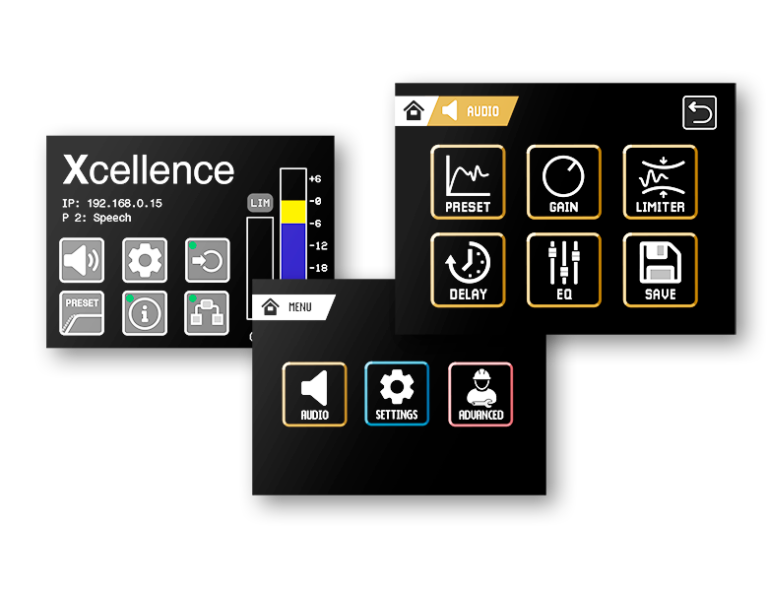

Amate Audio’s latest generation DSP system management is integrated with 3rd generation Class D amplification. Colour touchscreen operation and monitoring of DSP system includes access to powerful presets – engineered by Amate Audio’s R&D team – that instantly configure your Nítid loudspeaker for the majority of common application environments within seconds, prior to rigging or installation.
I dati
SPL
128 dB
POWER
1000 W
COVERAGE
50° to 100° (H) × 55° (V)
WEIGHT
19.9 kg
Prestazioni acustiche
| Frequency response (-10 dB) | 52 Hz to 19 kHz |
| Maximum SPL (1 m) | 128 dB |
| Coverage (-6 dB) | 50° to 100° (H) × 55° (V), asymmetrical horn |
Amplificazione
| Configuration | 12" active two-way |
| Amplifier power | 800 W (LF) + 200 W (HF), Class D bi-amp |
DSP e controllo
| Built-in DSP | 64-bit with touchscreen |
| Filtering | FIR filters |
| Presets | Factory presets |
Caratteristiche fisiche
| Dimensions (H × W × D) | 623 × 363 × 398 mm |
| Weight | 19.9 kg |
Specifiche dalla Panoramica prodotti Amate Audio, marzo 2026. Soggette a modifiche senza preavviso.
