XW118

    Active Subwoofer

    Entwickelt in Terrassa

    Xcellence XW118 — Perspective

    Perspective·1 / 5

    Xcellence XW118

    Funktionen

    Was es auszeichnet.

    • Integrated power & control with multiple presets
    • Integrated cardioid presets
    • > 250 V Overvoltage protection
    • High resistance polyurea® finish

    Highlight

    Touchscreen control

    Amate Audio’s unique rear-panel 3.5″ TFT color touchscreen GUI allows for operation and monitoring of system parameters, presets, and user-adjustments. The GUI also integrates Amate Audio’s latest generation DSP system management with 3rd generation Class D amplification. With the color touchscreen, users can access powerful presets engineered by Amate Audio’s R&D team that can instantly configure Xcellence loudspeakers for common application environments prior to rigging or installation. [Learn more about the XW118](https://amateaudio.com/latest/xw118/)

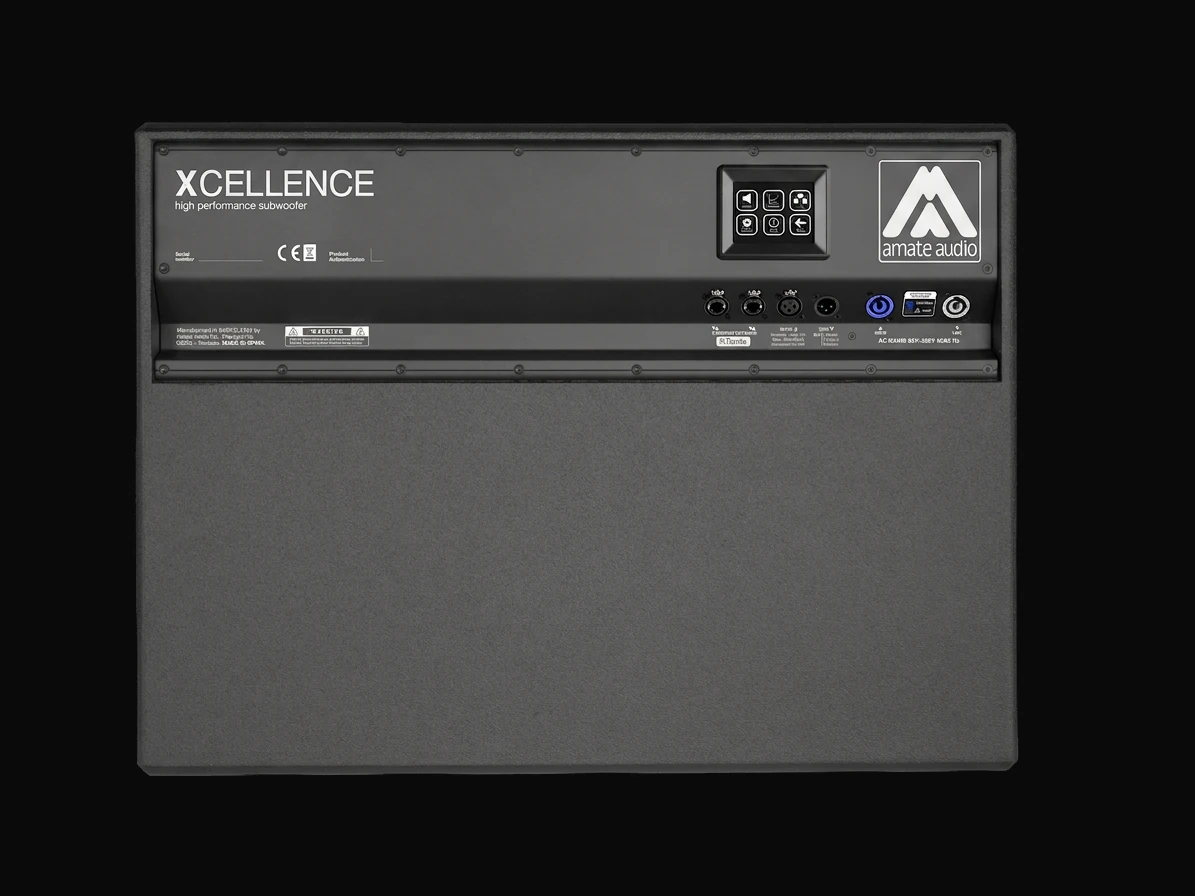

    Xcellence rear-panel 3.5″ TFT color touchscreen interface

    Die Daten

    Spezifikationen

    SPL

    133 dB

    FREQUENCY

    30 Hz to 140 Hz

    POWER

    2500 W

    WEIGHT

    56.8 kg

    Akustische Leistung

    Frequency response (-10 dB)30 Hz to 140 Hz
    Maximum SPL (1 m)133 dB (musical program)
    Coverage (-6 dB)Omnidirectional

    Verstärkung

    Configuration18" active subwoofer
    Amplifier power2500 W, Class D

    DSP und Steuerung

    Built-in DSP64-bit processing unit
    FilteringFIR filters
    Cardioid presetsIncluded
    ControlRear-panel touchscreen, DSP Studio 4 (PC and Mac)
    NetworkingDante, Act+

    Maße und Gewicht

    Dimensions (H × W × D)555 × 740 × 748 mm
    Weight56.8 kg

    Spezifikationen aus der Amate Audio Produktübersicht, März 2026. Änderungen ohne Vorankündigung vorbehalten.

    Downloads

    Spezifikationen und Ressourcen

    Dateien werden von Amate Audio gehostet. Links öffnen amateaudio.com.

    Im Einsatz

    Wo es zuhause ist.

    Install photography pending

    Beachfront Summer Festival, Costa Brava / 2024
